Grille and Diffuser
Air grilles help disperse air to a designated area for air conditioning or ventilation purposes.
Grille and Diffuser
Air grilles help disperse air to a designated area for air conditioning or ventilation purposes. These products are available in many designs, from standard models to customized designs.
Customers can order square diffusers which disperse air into 1-4 directions, slot diffusers with 1-4 or more slots, registers with double layered components to disperse air into 4 directions, jet diffusers, return air grilles, and exhaust air grilles.
- Square Ceiling Diffuser : SCD
- Return Air Grille : RAG-ZB
- Supply Air Register : ADG-V
- Linear Slot Diffuser : LSD
- Exhaust Air Grille : EAG
- Linear Bar Grille : LBG
- Round Ceiling Grille : RD
- Oppose Volume Damper : OBV

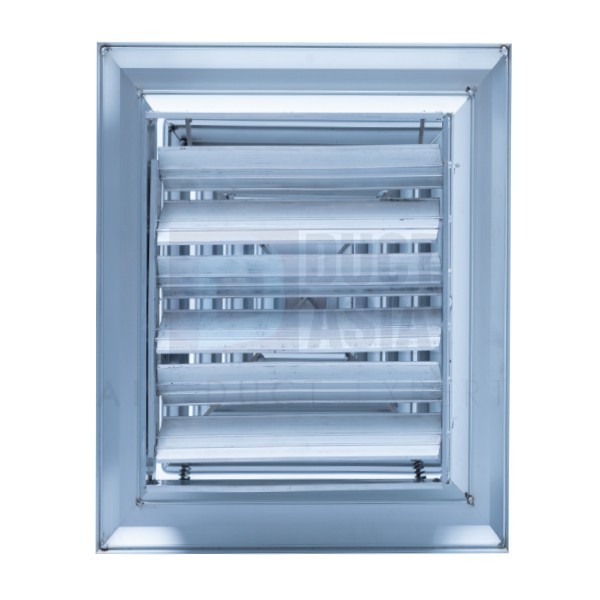

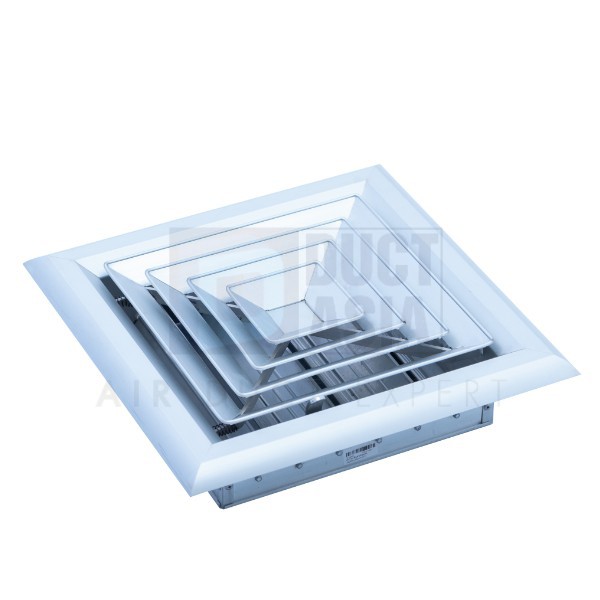

Square Ceiling Diffuser : SCD
Specification
- Available up to 4 way air register (standard 4 ways).
- Made of 1.2 mm Thick anodized aluminium.
- Fixed 3 cm of width louvers pattern of 45 degree
- Nominal height of 4.5 cm x width of 3.5 cm
- Available for additional volumizer dampers.
- Powder coating available i.e. black, white.
- Custom made size available for vent size 4” and above, conventional size available in even number size example 8”, 10”,12”, 14” etc.

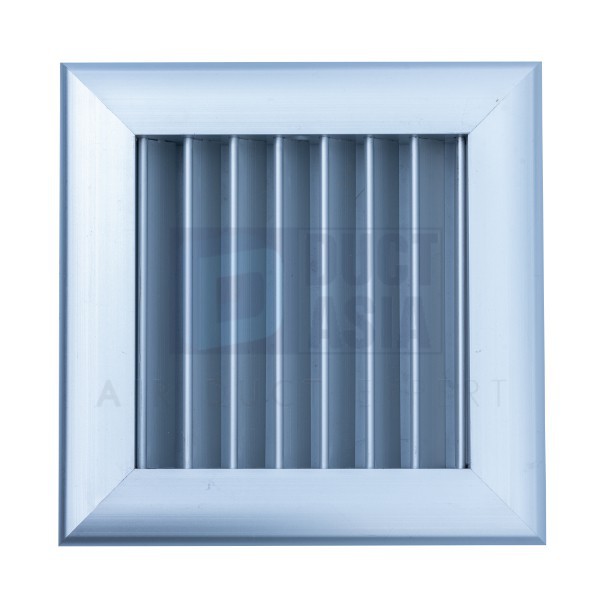

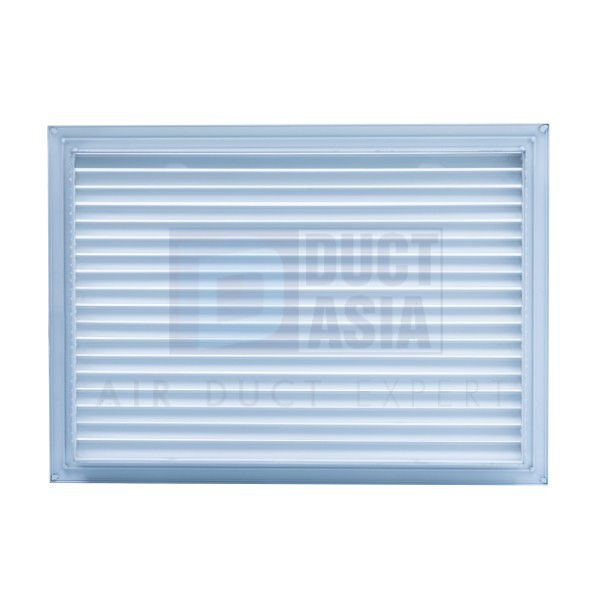

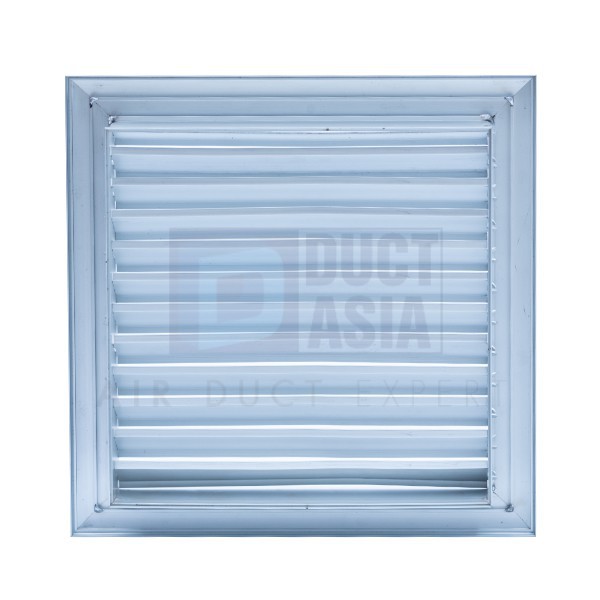

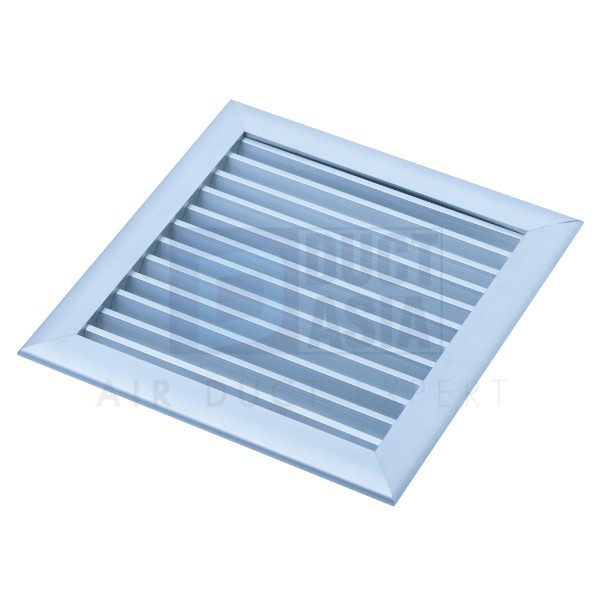

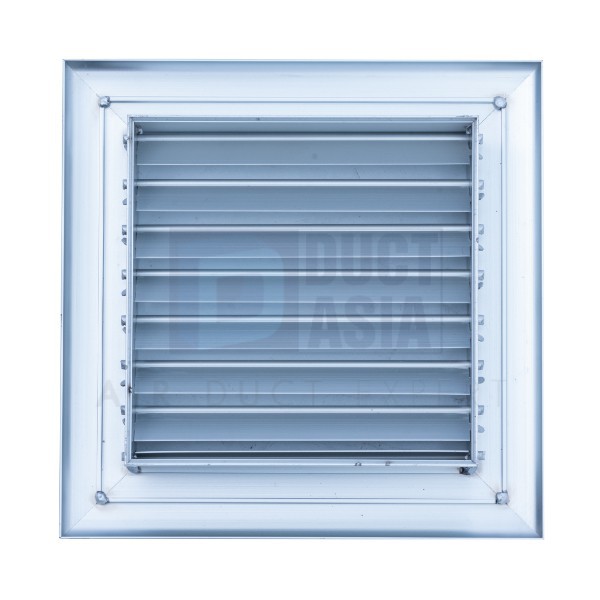

Return Air Grille : RAG-ZB
Specification
- Return air grilles with adjustable shutters, make maintenance and cleaning simple.
- Made of 1.2 mm Thick anodized aluminium.
- Fixed 3 cm of width louvers pattern of 45 degree.
- Nominal height of 3 cm x width of 3 cm
- Available for additional filters and volumizer dampers.
- Powder coating available i.e. black, white. Custom made size available for vent size 4” and above

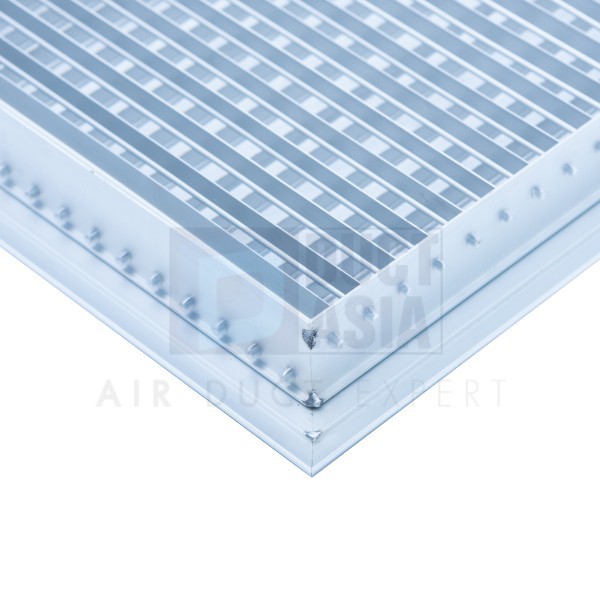

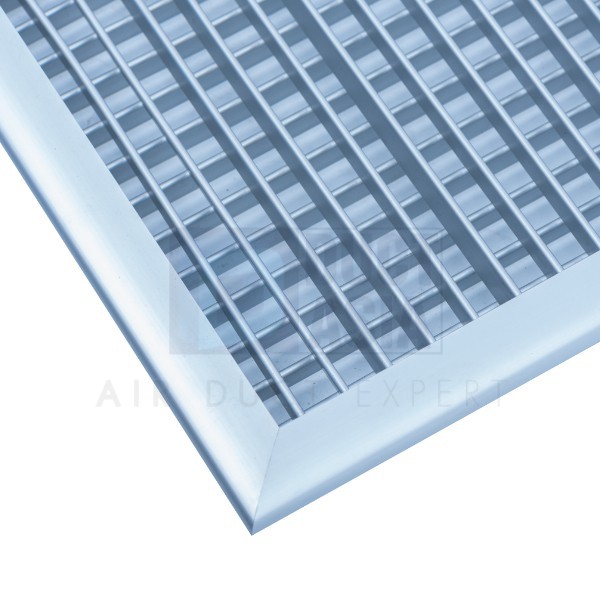

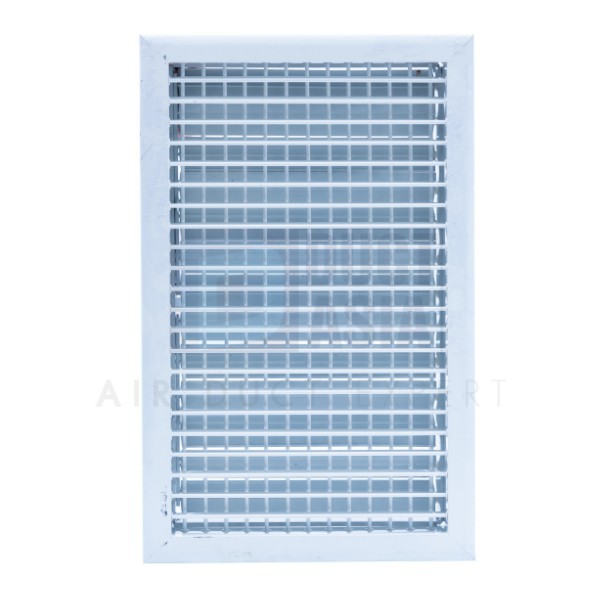

Supply Air Register : ADG-V
Specification
- 2 tiers air register with 4 ways air slots for ceilings and walls.
- Made of 1.2 mm Thick anodized aluminium.
- Free 2 tiers louvers (vertical and horizontal) of 1.5 cm width with 2 cm gap.
- Nominal height of 3 com x width of 4.5 cm
- Available for additional extra volumized dampers.
- Powder coating available i..e. Black, white. Custom made size available for vent size 4” and above.

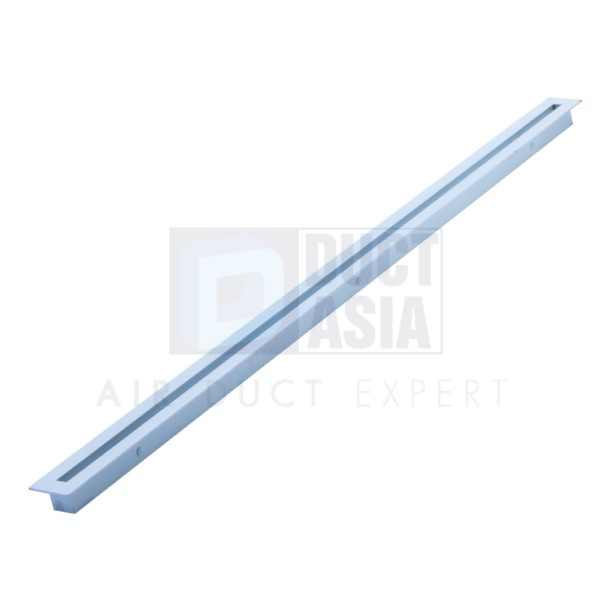

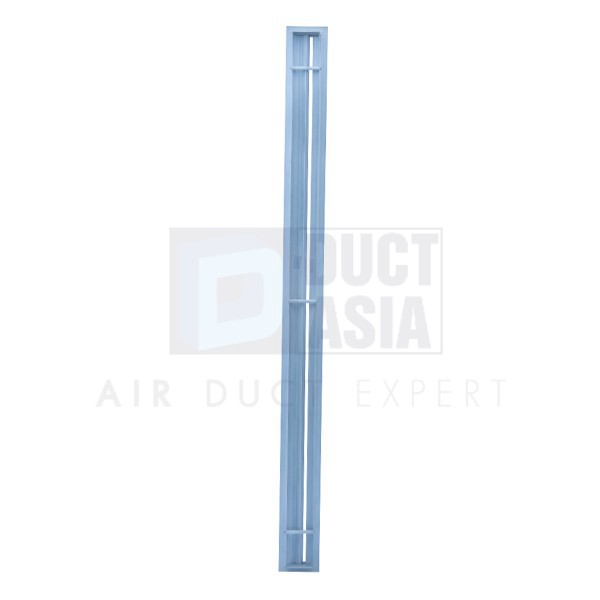

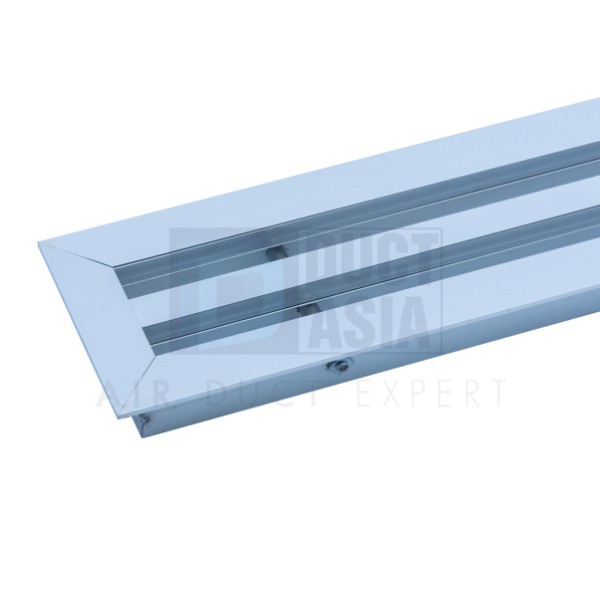

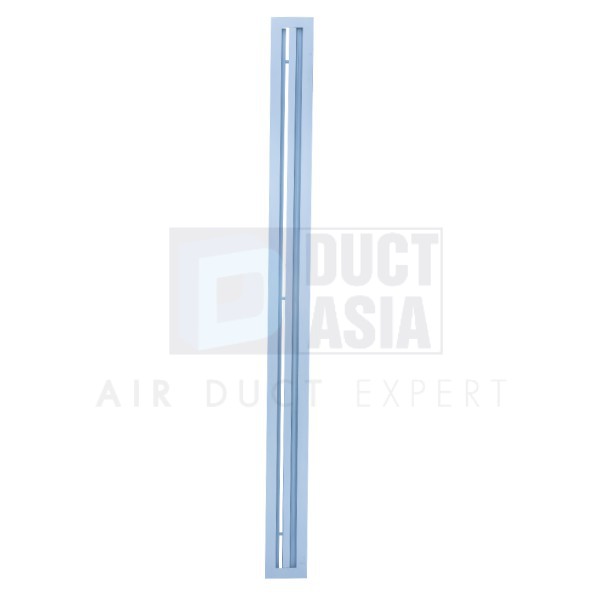

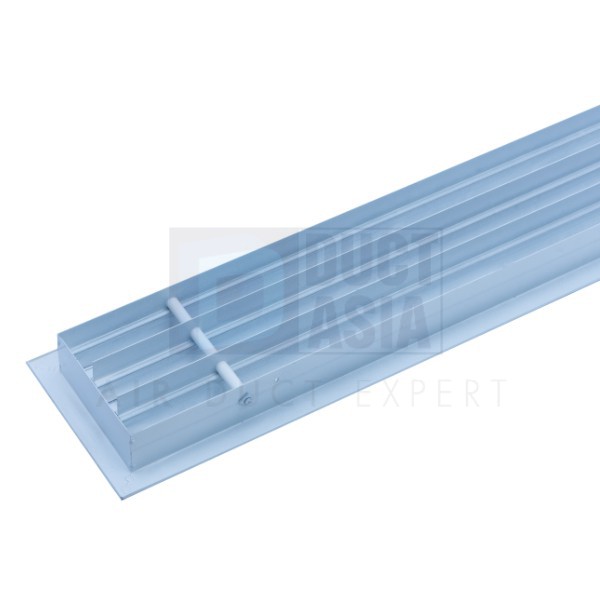

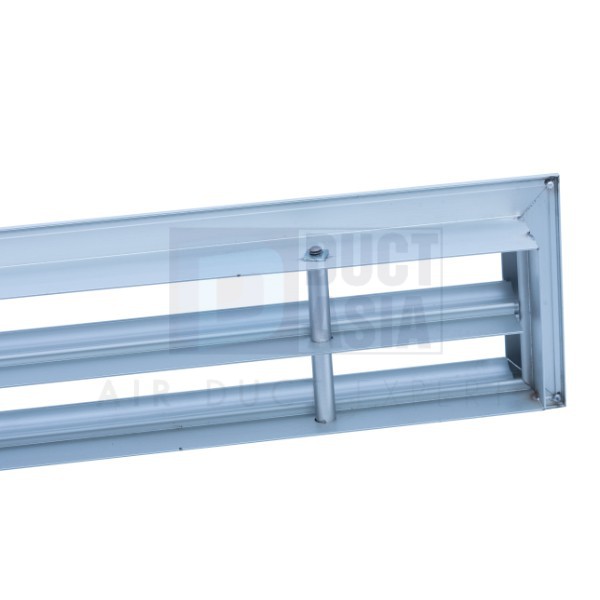

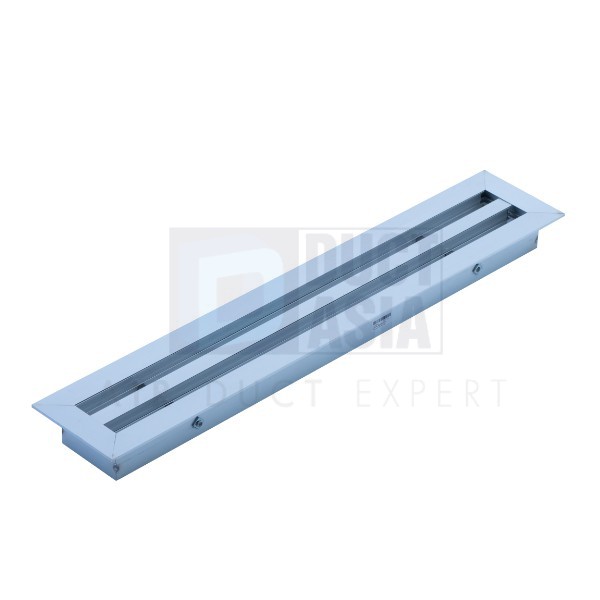

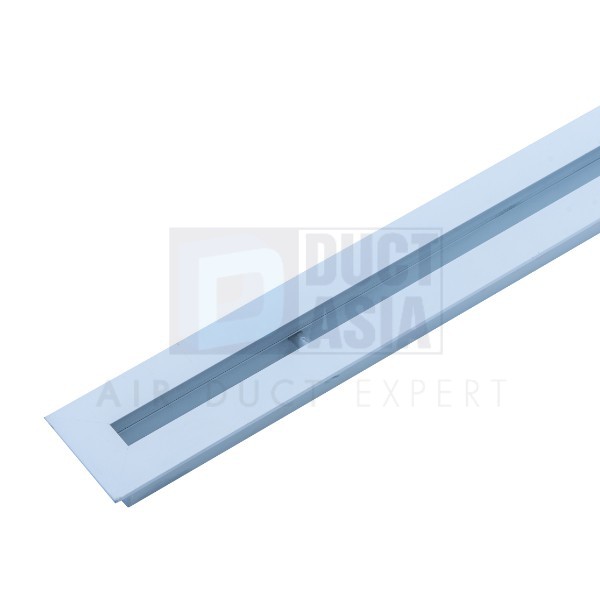

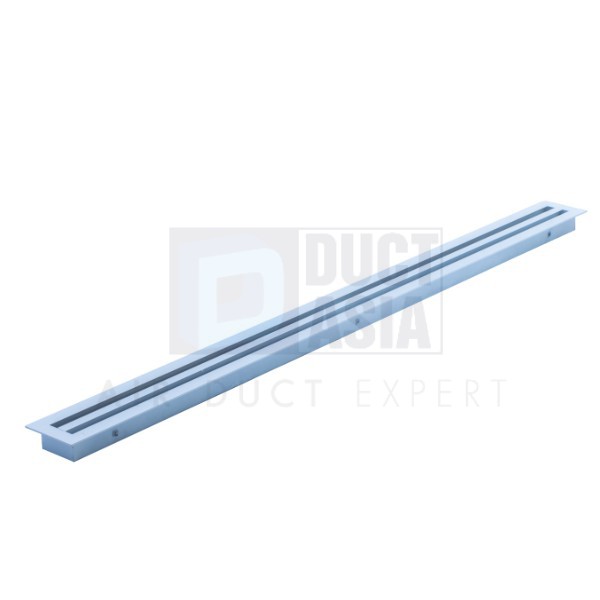

Linear Slot Diffuser : LSD
Specification
- Slot air register for wall and ceilings.
- Made of 1.2 mm Thick anodized aluminum. 2 cm of air slots or made to order.
- With hidden adjustable louvers for air directions and volume
- Adjustable slots airflow for different preferences.
- Nominal height of 2 cm each x width of 4.5 cm
- Powder coating available i.e. black, white.
- Custom made size available for the length of 30 cm up to 5 m or combine each diffusers to required length i.e. 50 m 100 m etc.

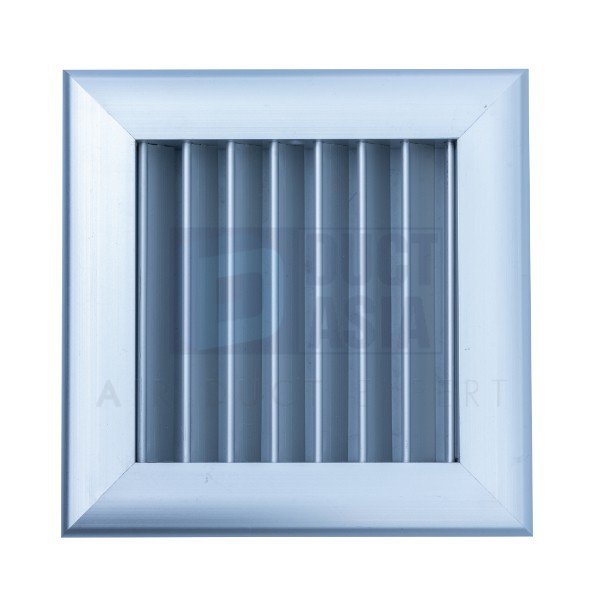

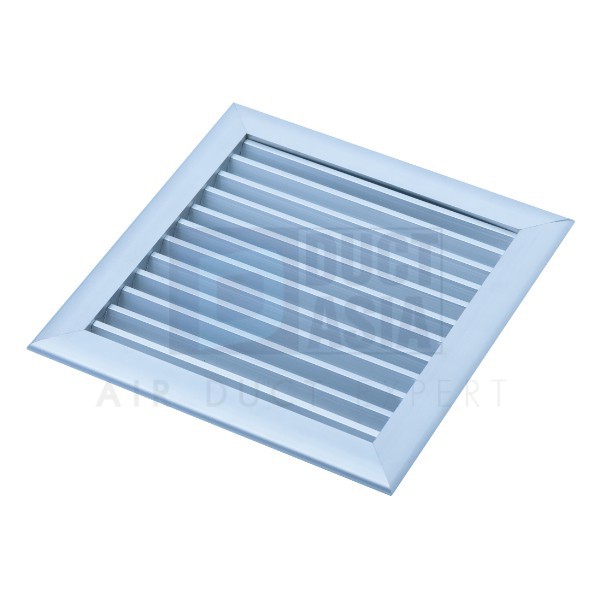

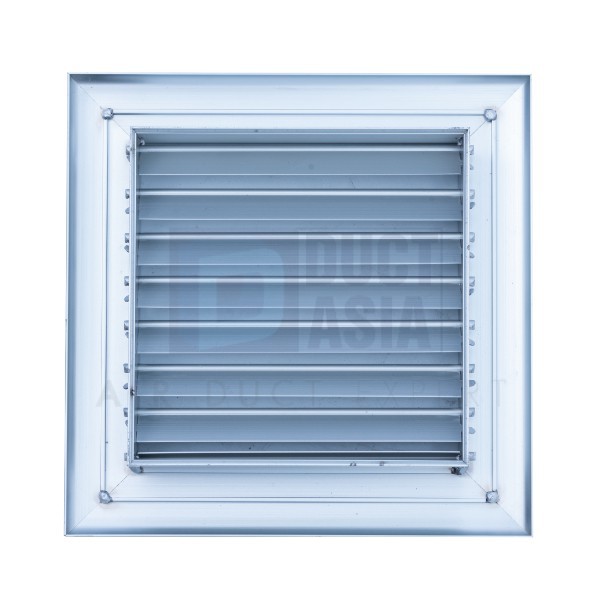

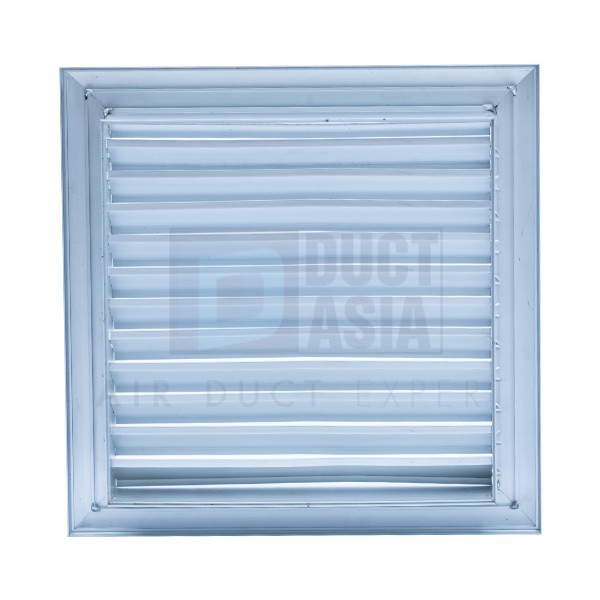

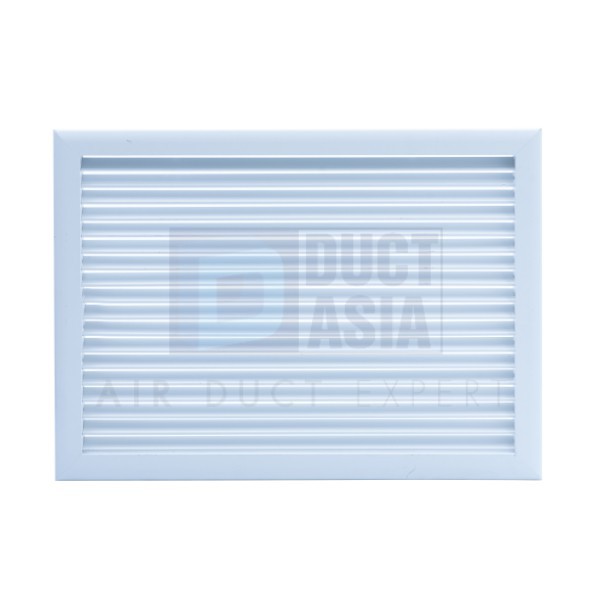

Exhaust Air Grille : EAG
Specification
- Type Z air register.
- Made of 1.2 mm Thick anodized aluminium.
- Fixed 3 cm of width louvers pattern of 45 degree.
- Nominal height of 3 cm x width of 3 cm
- Available for additional volumizer dampers and insect protectors.
- Powder coating available i.e. black, white. Custom made size available for vent size 4” and above.

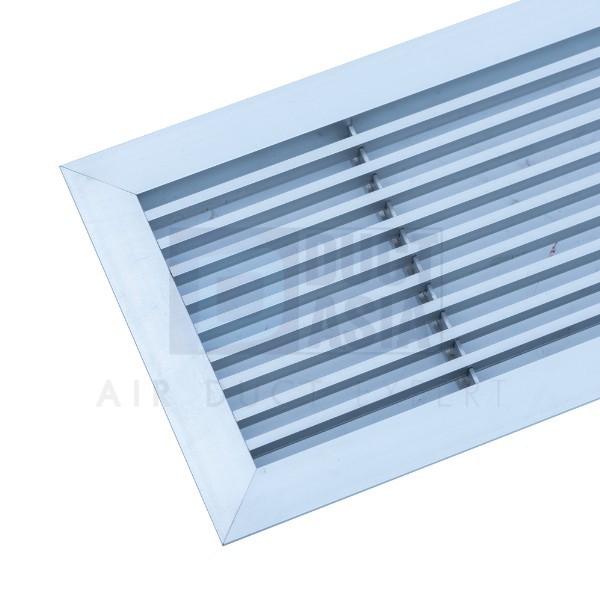

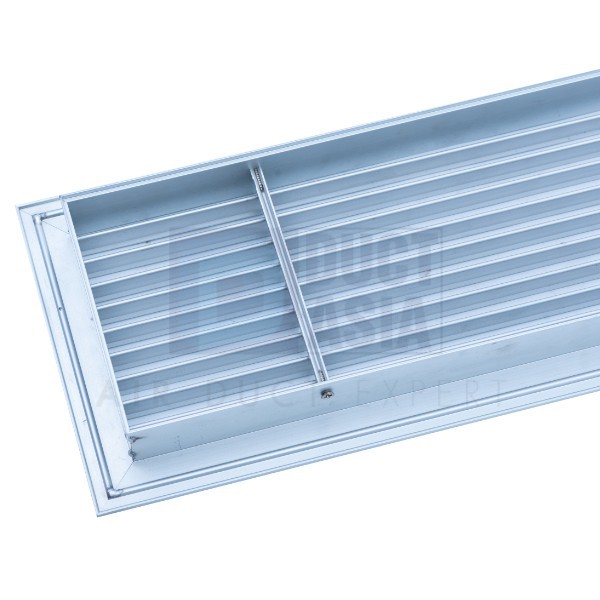

Linear Bar Grille : LBG
Specification
- Stylist design. Can be used as air register and air return.
- Made of 1.2 mm Thick anodized aluminium.
- Fixed horizontal louvers of width 15 cm with 1 cm Gap.
- Nominal height 25 cm x width 3 cm
- Available for additional filters and volumizer dampers.
- Powder coating available i.e. black, white. Custom made size available from 30 cm.

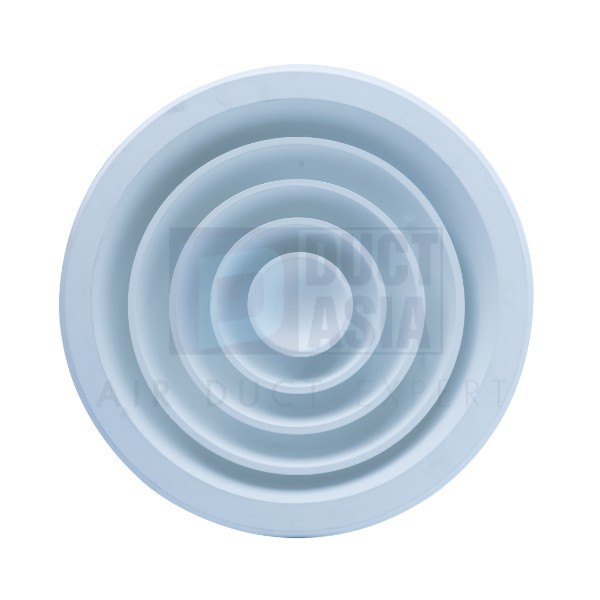

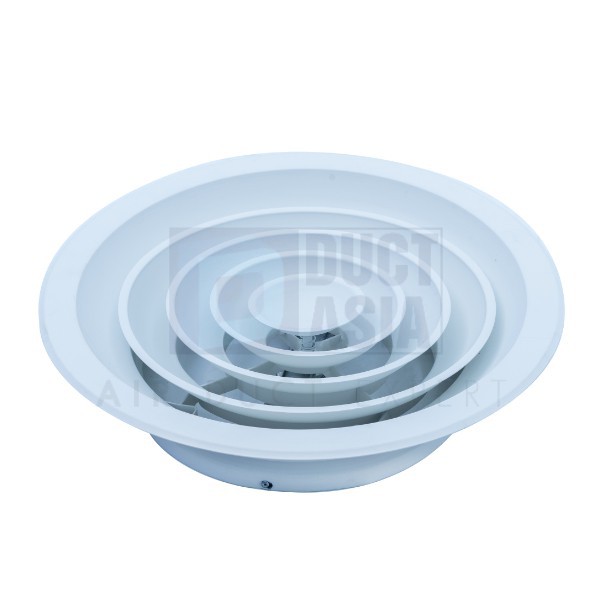

Round Ceiling Grille : RD
Specification
- Stylist design. Can be used air register and air return.
- Made of 1.2 mm Thick anodized aluminium.
- Nominal height 25 cm x width 5 cm
- Nominal for addition filters and volumizer dampers.
- Powder coating available i.e.. Black, white.
- Available 8”-20”

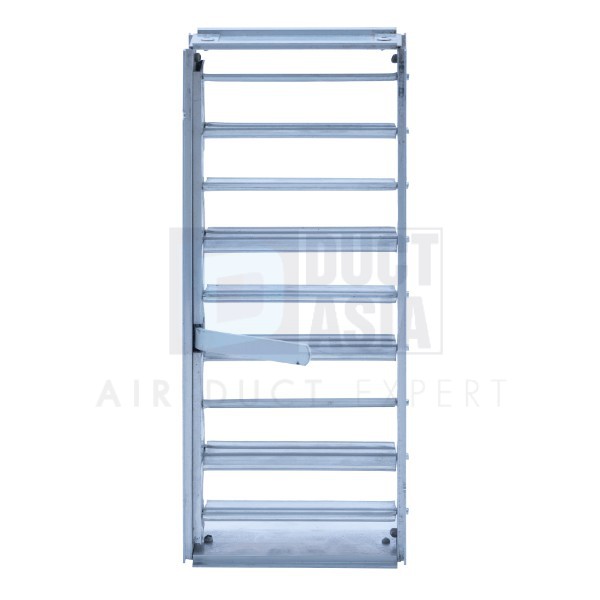

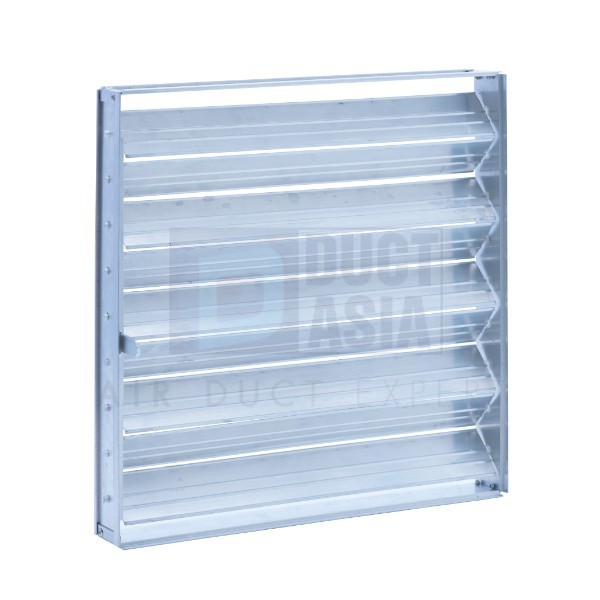

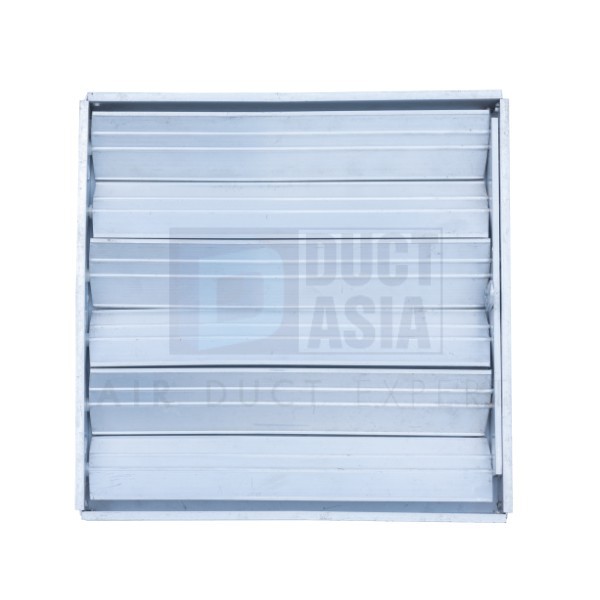

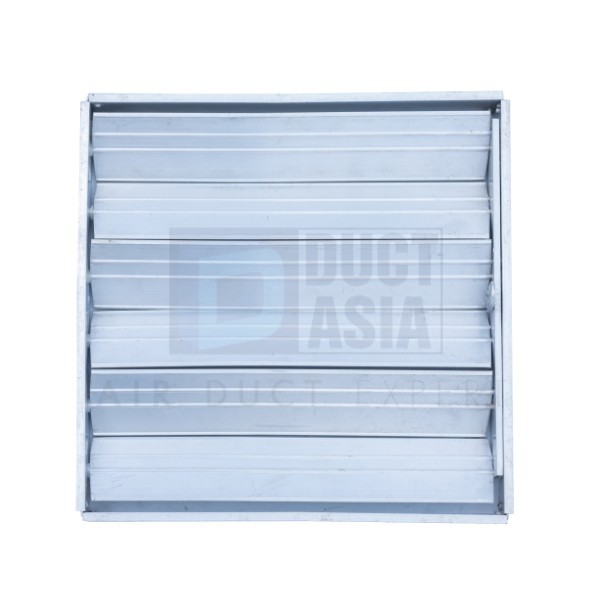

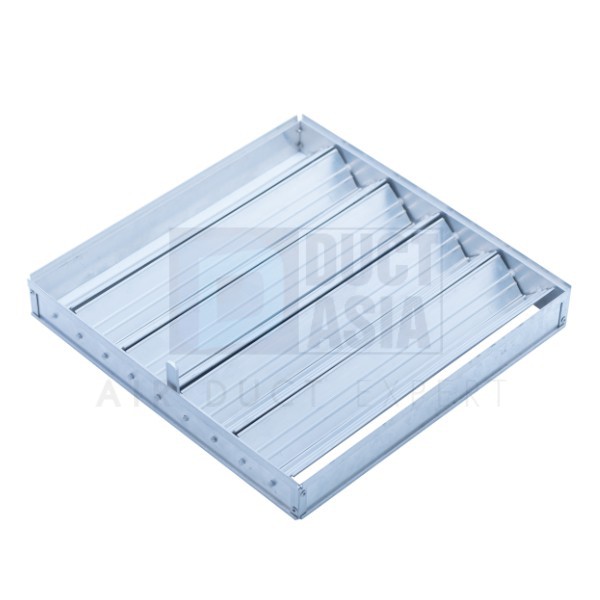

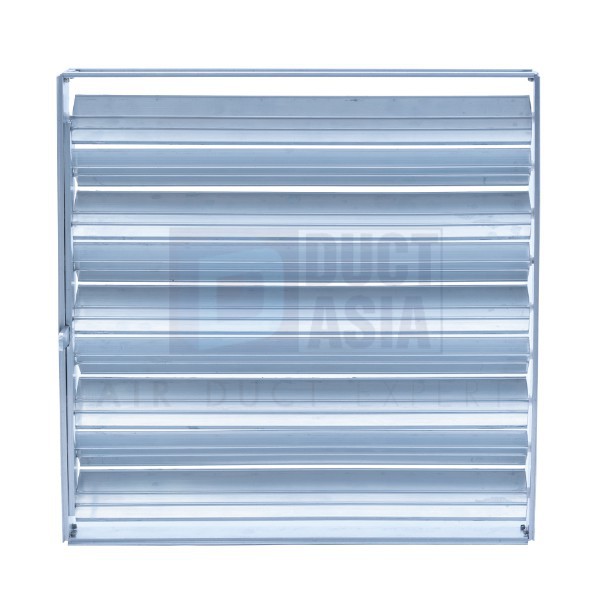

Oppose Volume Damper : OBV
Specification
- Made for a square air register.
- Made of 1.2 mm Thick aluminum.
- Zig-Zag louvers which open up when it’s on.
- Open and close using stick.
- Nominal width of 4 cm.
- Powder coating available i.e. black, white.
- Custom made size available from 4”
